Hello and welcome to Honglu pump
We are a solution provider of micro bubble generator which also called gas liquid mixing pump or DAF pump.
Since its interception, our company has been researching, developing and adapting our micro nano bubble
generator pumps to make it suitable for different specialty and new application or compatible to
different countries’ electricity system. From our factory in Shanghai, we can offer you different
models of micro bubble generator for your various applications and standby spare parts.
If you have any questions about our product, please contact our sales department directly by the
following contact information.
If you have any questions about our product and before you place an order to us, please contact our sales staff directly by the following contact information.
To meet our customers’ different requirements for their different applications. We developed different models of gas liquid mixing pumps with different capacity from 0.3m3/h (5l/min) to 50m3/h. Also if your application deals with acid solution, alkaline solution or sea water, you might need special casting material like SUS 316l, duplex or even Hartz alloy. We can customize the pumps with these kinds of special materials for your unique application.
For you dissolved air flotation application
Depending on the capacity of your DAF unit, we strongly recommend our closed couple type machine or coupling type machine for your applications. With our micro nano bubble generator being installed in your dissolved air flotation system, you can save the air compressor, high pressure tank and high pressure pump. Power consumption can be saved up to 40% compared to conventional method. Another advantage with micro bubble generator is that it is very easy to install and adjust the pump.
For ozone gas mixing application
we also recommend using our gas liquid mixing pump to generate the fully mixed ozone gas water. Due to the small volume of the micro bubbles, it can stay inside the water for a long time, so with this feather, the mixed ozone gas water can achieve a better oxidation effect compared to the traditional way using Venturi Pipe.
For the applications that involves oil transportation
we will need some special mechanical seal to seal the motor and pump so that there will be no leakage. We have a series of gas liquid mixing pumps for this application.
We offer detailed pre-sales and post-sales service and CAD drawings for your design purpose and machine selection. Since we have different series of pumps with different capacity and material, we will need your specific information of your application so that our experienced technical and sales person can help you to choose the right machine. Please feel free to contact us for the information about model selection.

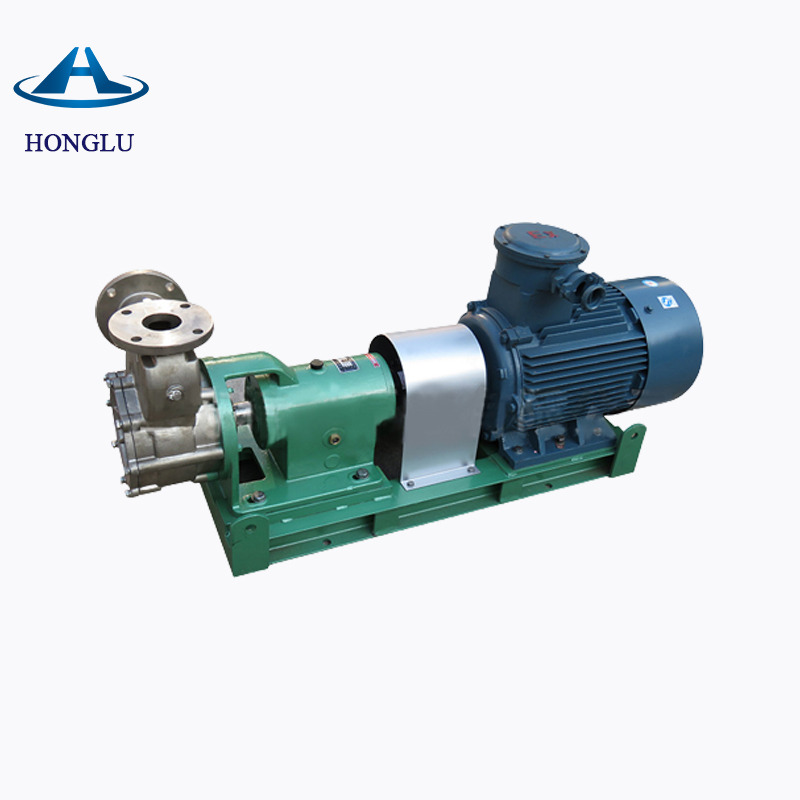

Product Introduction
The micro nano bubble generator, also called gas-liquid mixing pump, is a horizontally mounted self-priming gas-liquid mixing pump. The pump applies a standard click coupling connection or BSP thread connection. The pump's wetted components are all made of stainless steel like SUS 304, SUS316(L), DSS or Hartz alloy . The suction port of the gas-liquid mixing pump can draw in gas by the negative pressure, so there is no need to use a gas compressor and an atmospheric injector. The high-speed rotating impeller agitates the liquid with the gas, so no compressor and mixers are needed. Due to the pressurized mixing in the pump, the gas and the liquid are fully dissolved, and the dissolution efficiency can reach 80 to 99%. Therefore, a high-pressure solution can be obtained without a large pressurized gas tank or an expensive reaction tower. A gas-liquid mixing pump can be used for gas-liquid attraction, mixing, dissolution and direct delivery of highly dissolved liquid to the point of use. Therefore, the use of a gas-liquid mixing pump can improve the efficiency of the dissolved gas production, simplify the preparation device, save the space, greatly reduce the initial investment, save operating costs and maintenance costs.
Installation
The mixing solution of gas liquid mixing pump can overcome the difficulty of dissolving and pressurizing gas into the liquid and can evenly mix the two different kinds of liquid. The gas liquid mixing pump, compared to the conventional mixing machine, greatly simplifies the mixing process and maximally miniaturize the equipment so as to save the investment cost. One typical use of gas-liquid mixing pump is with dissolved air flotation system. With our gas-liquid mixing pump (micro nano bubble generator), not only can the parts like pressure pump, air compressor, ejector, high-pressure container tank and releaser be eliminated, but so are the problems like releaser clogging, large bubble tumbling and pressure pump failure which are the problem inevitably and difficultly to solve with the conventional dissolved air flotation system. Gas-liquid mixing pump can generate micro bubbles which can greatly and efficiently improve the quality of water.
Air flotation treatment. When the reflux ratio is 1:1, the water treatment capacity is 1~225m3/h.
Removal of impurities in well water, such as pre-engineering for semiconductor pure water manufacturing
Wastewater treatment with grease, for example kitchen wastewater
Urine treatment after screening, such as excrement treatment of livestock
Resource recycling, such as recycling and recycling of paper fibers
Front-end treatment of plant wastewater, for example for the recovery of food, crystallization, pharmaceuticals
Sediment, floats, fouling sludge, algae recovery, for example for ponds, lakes
A tiny bubble bath like a cow's milk, such as a milk bath for hotels and restaurants.
Water surface projection in a large celebration, like a water screen
Decoration of the water surface
High concentration ozone water treatment (use example) The water preparation capacity can be up to 54m3/h. The ozone concentration can reach 30mg/L.
Water quality improvement. Sterilization. Deoxidation, for example, for drinking water, beverages, underground well water
Fresh food sterilization and preservation, for example, in food factories, restaurants, canteens
Medical institutions, such as for instruments, wounds, white clothes, bedding, sterilization of wastewater, disinfection, decolorization, deodorization
Sterilization of drinking water, water towers, water pipe descaling
Sterilization of circulating water. Deodorization, for example, for swimming pools. Hot springs. Baths
Reduce BOD.COD, decolorization of dye drainage, such as wastewater treatment in factories
Laundry room. Paper mill, for example for sterilization, bleaching, deodorization, drainage and bleaching
1.What is gas-liquid mixing effeciency?
The percentage of dissolved gas in the liquid is between 8% - 10%.
2.What is the MOQ?
One piece for your trial order.
3.Can you meet special requirements from customers?
Yes. We can provide specific solutions to your actual requirements. For instance, if you want to apply the products to cultivate aquacultures in the sea water and you need special anti-corrosive material to protect the machine, we can customize the machine with SUS 316L or dual-phase steel. Also please name your special requirements about the voltage and electricity frequency. A kind remind here, motors manufactured in China normally are 50Hz.
4.How long is the lead time?
The lead time depends on which model and how many of the machines do you need to order. Please contact our sales rep. to get more information of your demand.
5.Can I get discount from bulk import?
Yes off course. The products' price benefits from bulk production.
6.What are your customers mainly from?
Our customers are mainly from South Asia, Europe and Latin America. We currently have customers from Thailand, Indonesia, South Korea, Czech Republic, Panama etc.
7.Agent wanted.
Please send email to inform us if you want to be an agent of our product in your region. We welcome agents from all over the world and we can discuss more about this if you’re interested.
8.More questions?
Please feel free to contact me any time you like via below contact information for more questions.
We will customize your package as per your requirements
Shanghai Honglu is a high-tech enterprise dedicated to the research, development, design, experiment, manufacturing, trade and service of fluid equipment and nano-scale dissolved oxygen technology.
Shanghai Honglu pays close attention to the reliability, economy and practicality of the equipment. Our products have been applied in industrial wastewater pressure floatation, ozone water preparation, hydrogen-rich water mixing, high-density fish and shrimp cultivation, hydroponic cultivation, river water and lake water oxygenation as well as water treatment, food processing , fruit and vegetable cleaning, petrochemical, smelting, papermaking, textile printing and dyeing, medicine, surface treatment and other fields. Our products have been widely used, recognized and exported to many countries and regions.
Shanghai Honglu adheres to the core values of “Technology improves the environment, innovation achieves the future”, to the concept of “Quality First, Excellence”. We work hard to become the top supplier of “Nano-gas-liquid/liquid-liquid mixing equipment”.
